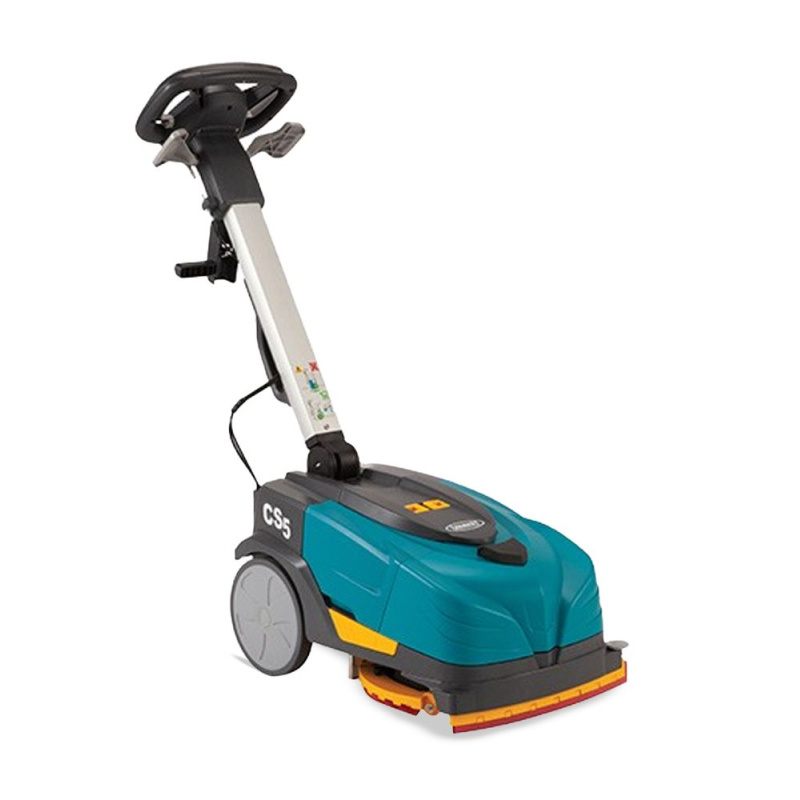

Tennant CS5 Micro Floor Scrubber

The Tennant CS5 Scrubber is Small in Size, Big on Clean

The Tennant CS5 is a compact, lightweight micro scrubber built for tight spaces where a mop just won’t cut it. Designed to make everyday floor care easier and more consistent, the CS5 lets operators clean hard surfaces quickly without the hassle of buckets or towels.

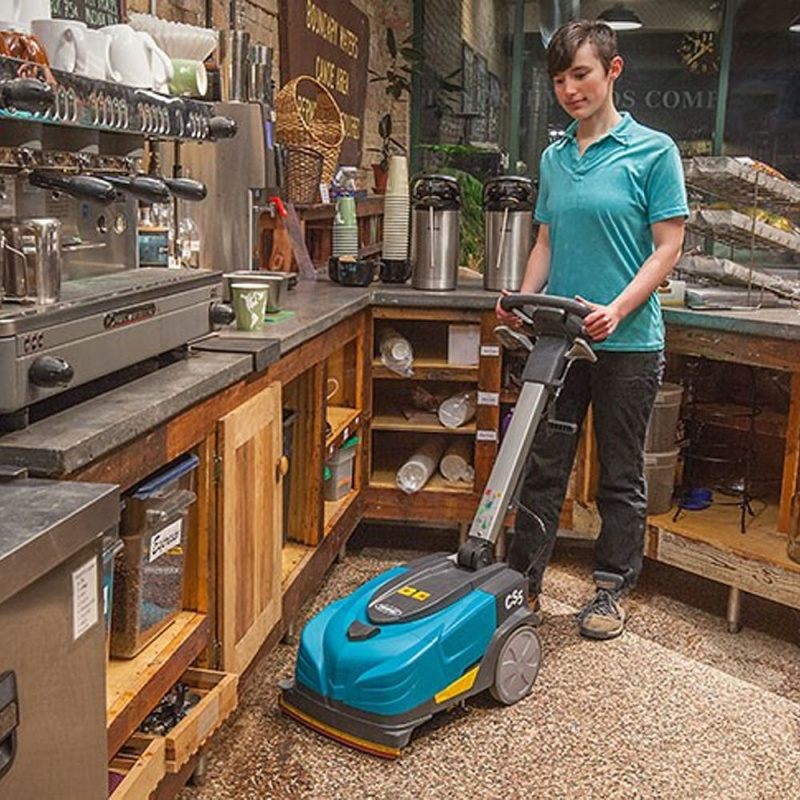

With its slim cleaning path, manoeuvrable profile and intuitive operation, this little machine is ideal for retail shops, cafés, office foyers, healthcare alcoves and other confined areas that need professional cleaning results without the bulk of a full-size scrubber.

Key Features & Benefits of the Tennant CS5

• Compact & Agile: Lightweight frame and movable handle make it easy to clean under and around obstacles.

• Efficient Power: Runs on a lithium-ion battery, offering up to 50 minutes standard operation or up to 75 minutes with the optional battery upgrade.

• Two‑Squeegee System: Cleans and dries simultaneously in both forward and reverse, reducing slip risk and improving productivity.

• Safe Water Handling: Separate 5 L solution and recovery tanks deliver clean water for scrubbing and recover the dirty water to avoid leaving a slick surface.

• Powerful Scrubbing Performance: Up to 12 kg of down pressure helps agitate and clean even stubborn grime.

• Quiet Operation: Runs at only 63 dBA, making it ideal for noise-sensitive indoor environments.

• Effective Cleaning Coverage: Cleans up to 976 m² per hour, allowing for rapid results in confined areas.

How Does the Tennant CS5 Floor Scrubber Compare in the Tennant Compact Battery Range?

Before choosing a compact floor scrubber, it helps to understand how each model is designed to fit different cleaning needs. While all three options focus on small to medium spaces, the key differences come down to size, power source, coverage and productivity. Here’s how the Tennant CS5 compares to the CS16 and T1B, and when each one makes the most sense on site.

• Tennant CS5 – The smallest and lightest option in the range. With its narrow cleaning path and modest tank capacities, the CS5 is ideal for very tight areas and quick spot cleaning jobs where agility and simplicity are the top priorities.

• Tennant T1B – Best for simple, battery-powered cleaning in tight areas. With a cylindrical brush system that excels at picking up loose debris as well as scrubbing, the T1B is great where both soil removal and small debris pickup matter on hard floors.

• Tennant CS16 – The most balanced option in the compact range. Battery-powered for cord-free cleaning, with a wider cleaning path and larger tanks than the CS5, delivering higher productivity while still fitting comfortably into congested and high-use spaces.

The Tennant CS5 Floor Scrubber is Built for Simplicity

The CS5 is engineered for straightforward operation — so you spend less time learning the machine and more time cleaning:

• Compact & Lightweight: Easy to steer and manoeuvre around fixtures, furniture and corners, even in very tight spaces.

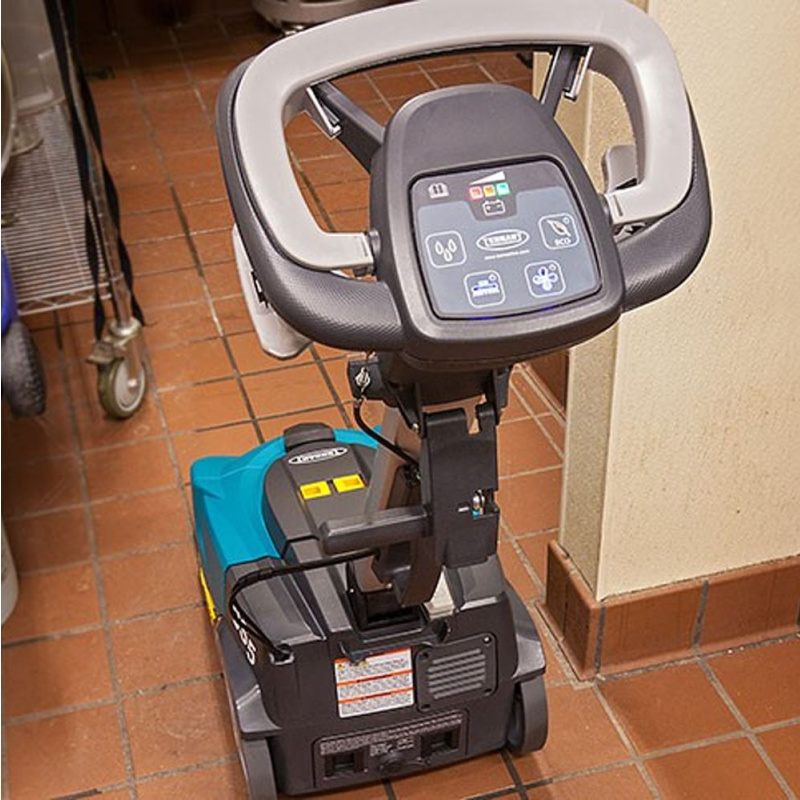

• Quick Start Controls: Intuitive dial and switches mean operators can start cleaning with minimal training.

• Battery Power: Clean cord-free with solid runtime — and swap batteries easily between shifts.

• Effective Scrub Performance: Delivers consistent water delivery and scrub pressure for quick soil removal on hard floors.

• Easy Daily Maintenance: Simple tank access and tool-free brush removal make filling, emptying and upkeep fast and hassle-free.

Tennant CS5 Technical Specifications

• Cleaning Path: 280 mm

• Productivity (Theoretical Max): 976 m²/hr

• Estimated Coverage: 639 m²/hr

• Maximum Speed: 3.5 km/h

• Brush Speed: 160 RPM

• Brush / Pad Pressure: 12 kg

• Solution Tank Capacity: 5 L

• Recovery Tank Capacity: 5 L

• Battery Run Time (up to*): 75 mins (Standard) | 50 mins (Optional)

• Battery Voltage: 36 V

• Dimensions (Upright – L × W × H): 615 × 412.5 × 1,049 mm

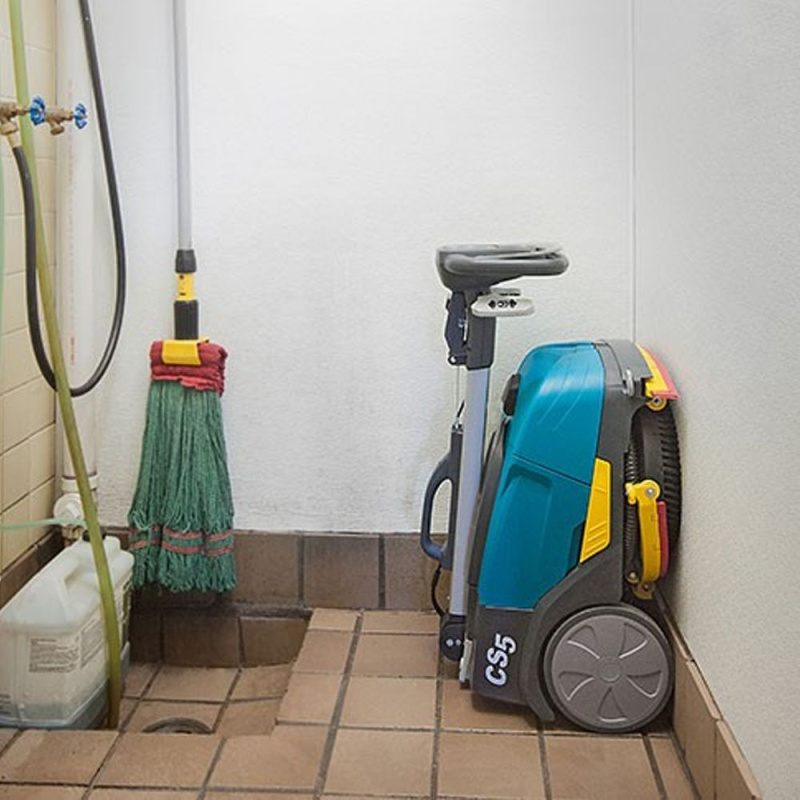

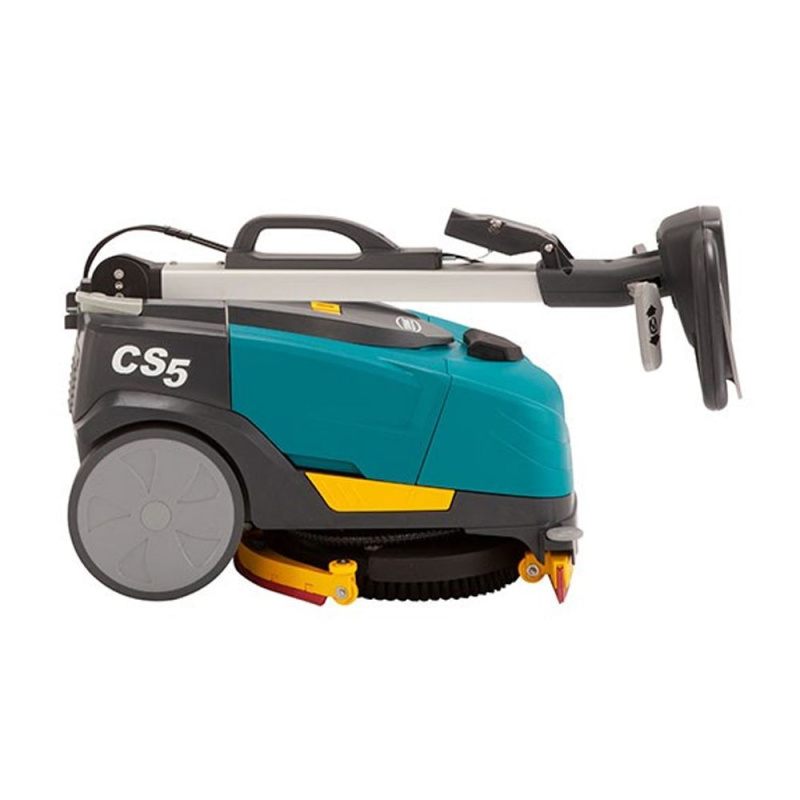

• Dimensions (Storage – Handle Folded – L × W × H): 770 × 412.5 × 399 mm

• Weight (With Batteries):

  • 20.2 kg (Standard) | 19.8 kg (Optional)

  • 44.53 lbs (Standard) | 43.65 lbs (Optional)

• Sound Level (Operator’s Ear): 63 dBA
