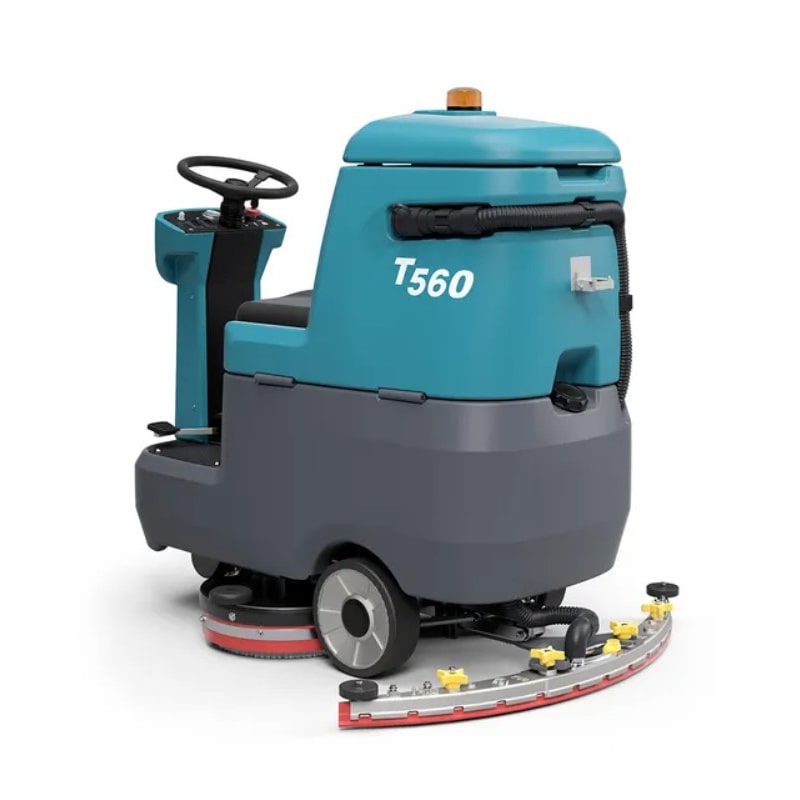

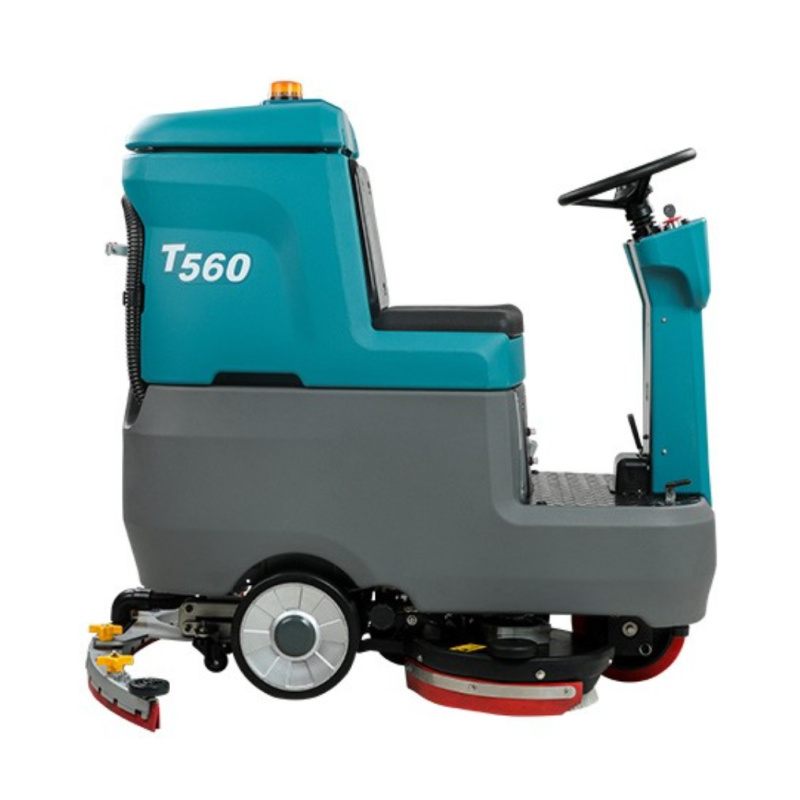

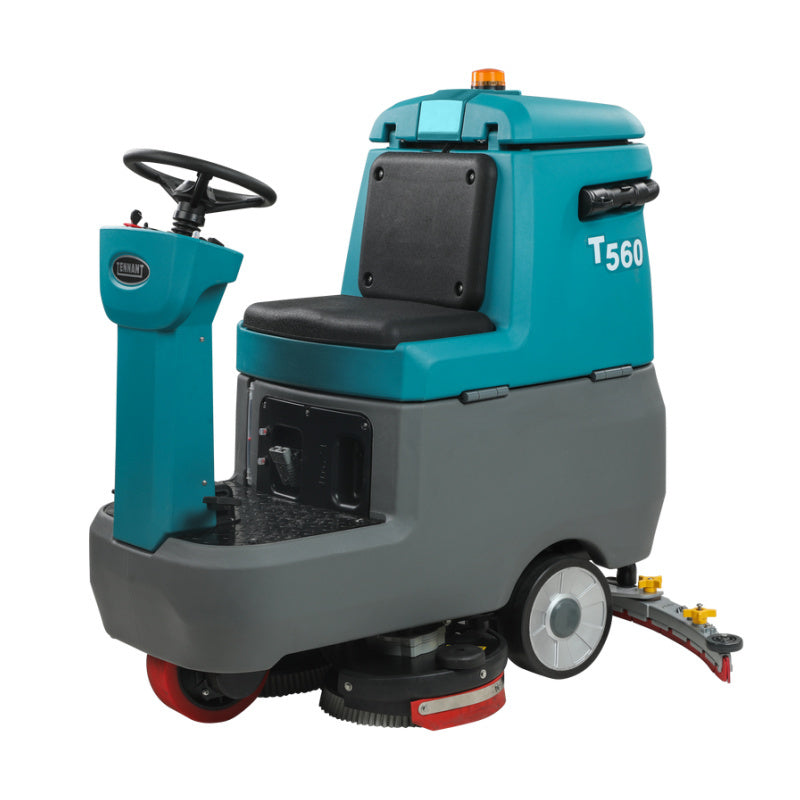

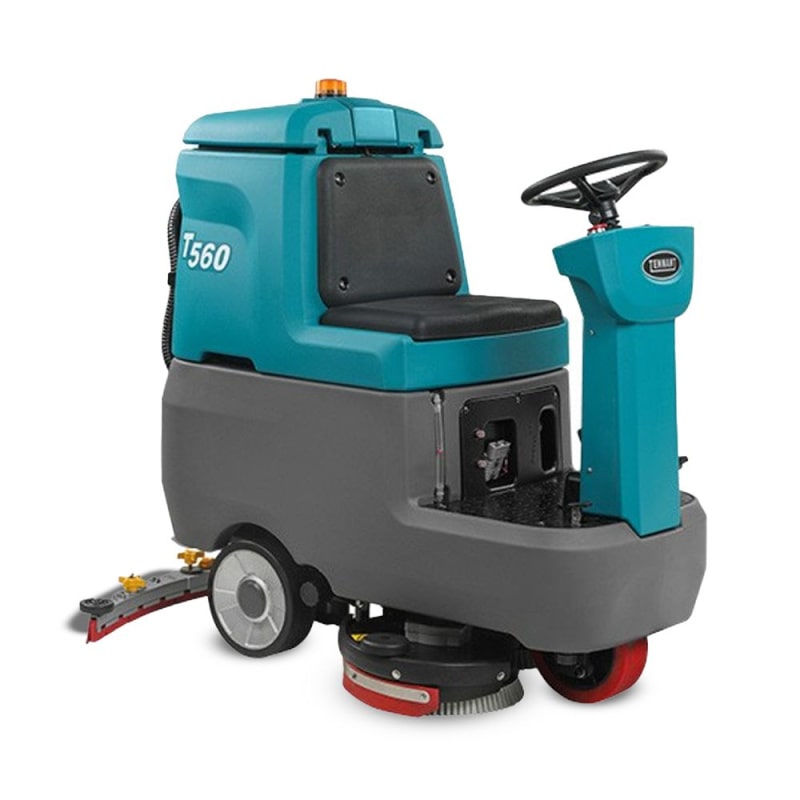

Tennant T560 Micro Ride-On Floor Scrubber

Scrub Smarter with the Compact Ride-On Power of the Tennant T560

The Tennant T560 is a compact micro ride-on floor scrubber designed to deliver serious cleaning performance without the bulk of a full-size ride-on machine. It’s ideal for facilities that want to increase productivity while still being able to manoeuvre easily through tight aisles, busy walkways and confined spaces.

With strong scrubbing power, excellent water recovery and long run times, the T560 helps teams clean faster, safer and more efficiently, leaving floors dry and ready to use. If you’re looking to step up from a walk-behind scrubber but don’t need a large industrial ride-on, the Tennant T560 hits the sweet spot between performance, size and ease of use.

Key Features & Benefits of the Tennant T560

• Wide Cleaning Path
  A 700 mm dual-brush/disc scrub path allows fast and effective cleaning (up 4,200 m² per hour), even in areas with limited space.

• Compact & Highly Manoeuvrable

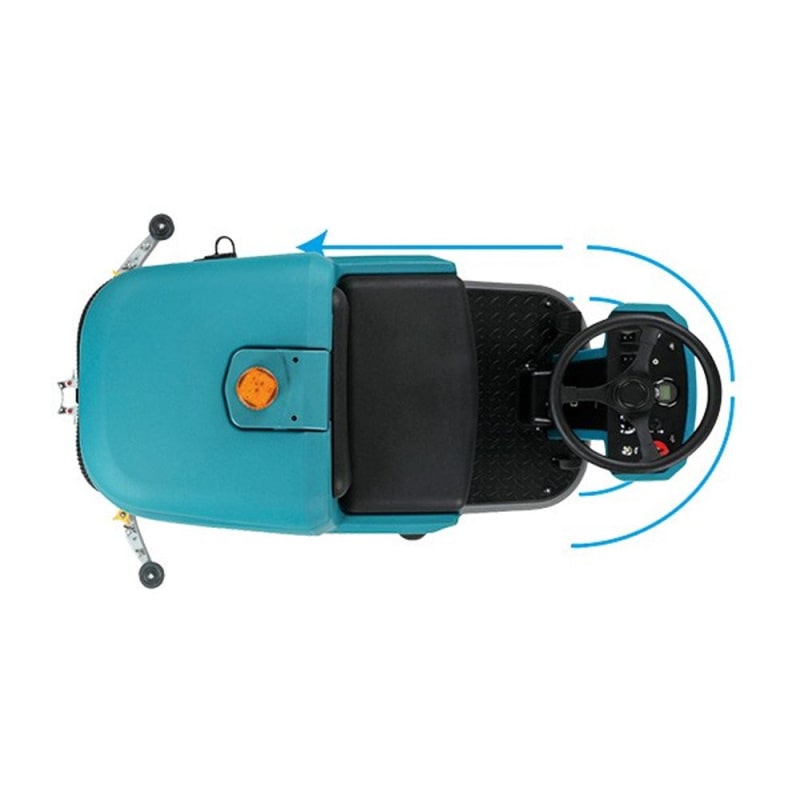

  At just 800mm wide, Its small footprint and 1-metre turning radius make it easy to navigate narrow aisles, congested zones and tight corners.

• Smart Water Protection
  An integrated solution tank sensor safeguards the vacuum motor by preventing operation when water levels are low.

• Tool-Free Maintenance
  Brush, squeegee and key components are designed for quick, tool-free removal, reducing downtime.

• Strong Water Recovery
  A 550 W vacuum motor, parabolic squeegee and p-trap system improve pickup performance, reduce streaking and minimise slip hazards.

• Operator Visibility & Control
  Front-wheel drive and an elevated seating position give the operator great forward visibility and precise movement.

• Durable Internal Design
  Separate hot and cold air ducting helps protect internal components for longer machine life.

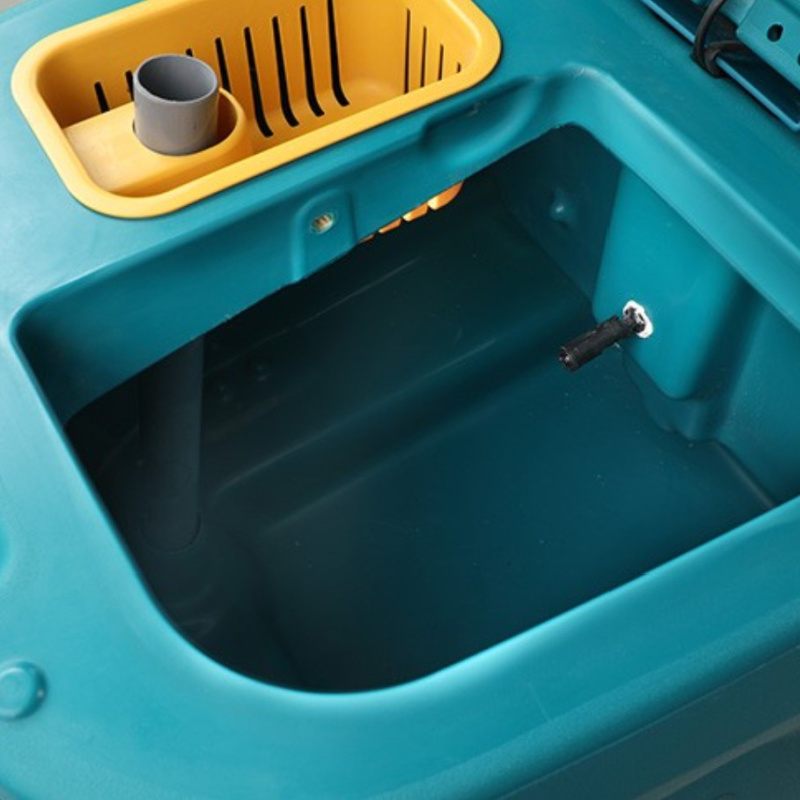

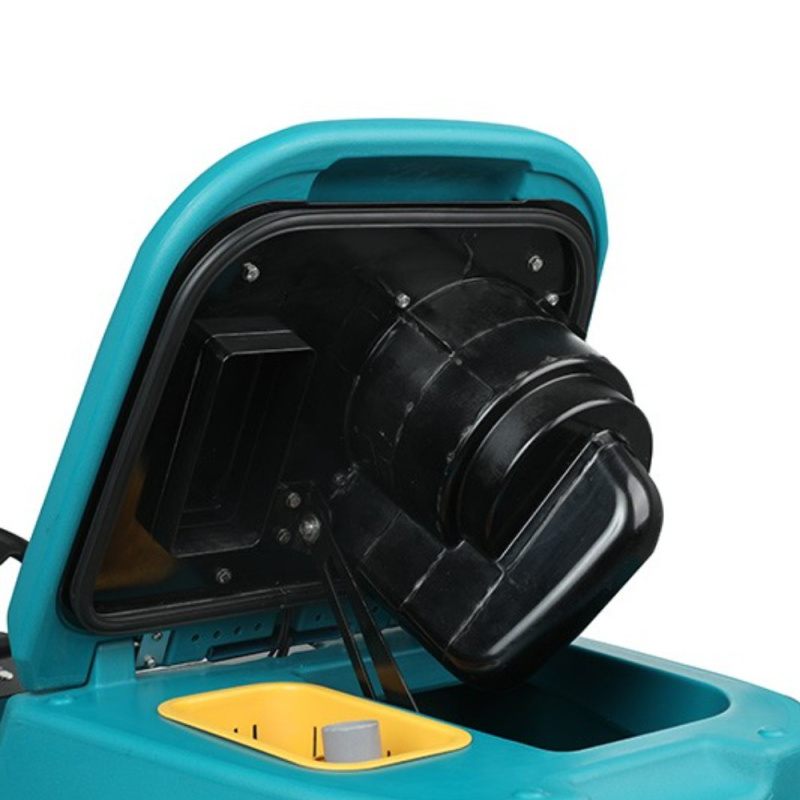

• Large Easy-Clean Tanks
  Wide access openings and yellow touchpoints simplify maintenance and speed up large 70L daily tank cleaning.

Where the Tennant T560 Sits in the Tennant Scrubber Range?

The Tennant T560 is part of Tennant’s range of ride-on floor scrubbers, positioned as a micro ride-on model that combines compact size with ride-on productivity. It sits below larger ride-on scrubbers like the T7 and T12, offering a nimble solution for facilities that need the efficiency of a ride-on machine without the bulk of a full-size unit.

In short, the T560 fills the niche between big walk-behind machines and full-size ride-ons: compact enough for tighter spaces, yet powerful enough for serious daily cleaning in retail, commercial, healthcare, and institutional environments.

In the broader Tennant scrubber range:

• Smaller walk-behind scrubbers (from the T290 to T600 series) — ideal for compact spaces and smaller areas

• Micro ride-on scrubbers like the T560 — suited to medium to large indoor areas where manoeuvrability matters but ride-on productivity is needed

• Mid to full-size ride-on scrubbers (e.g., T7, T12, T16) — designed for large facilities, wider cleaning paths, bigger tank capacities, and long uninterrupted cleaning runs

Tennant T560 Technical Specifications

• Cleaning Path: 700 mm

• Productivity (per hour): 4,200 m²/hr

• Scrubbing Speed: 6.0 km/h

• Brush Speed: 150 rpm

• Brush Motor Power: 2 × 400 W

• Water Suction Motor: 550 W

• Solution Tank Capacity: 70 L

• Recovery Tank Capacity: 75 L

• Battery Voltage: 24 V

• Battery Quantity (AGM): 2

• Battery Capacity (AGM): 176 Ah (10-hour rate)

• Dimensions (L × W × H): 1310 × 800 × 1240 mm

• Weight (without batteries): 164 kg

• Weight (with AGM batteries): 262 kg

• Sound Level (operator’s ear): 72 dBA
