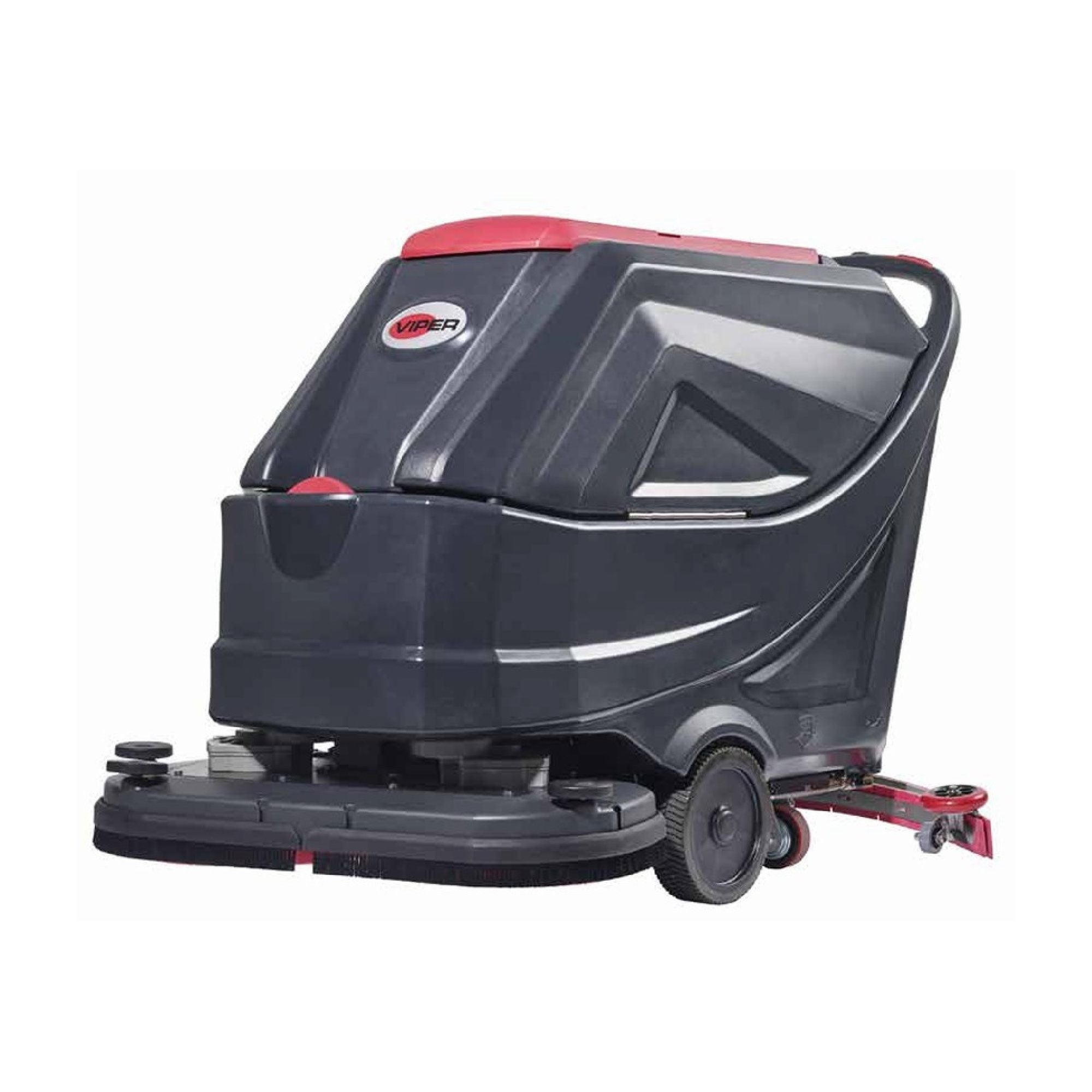

Viper AS6690T Large Walk Behind Scrubber / Dryer
Key Benefits & Features of the Viper AS6690T
-

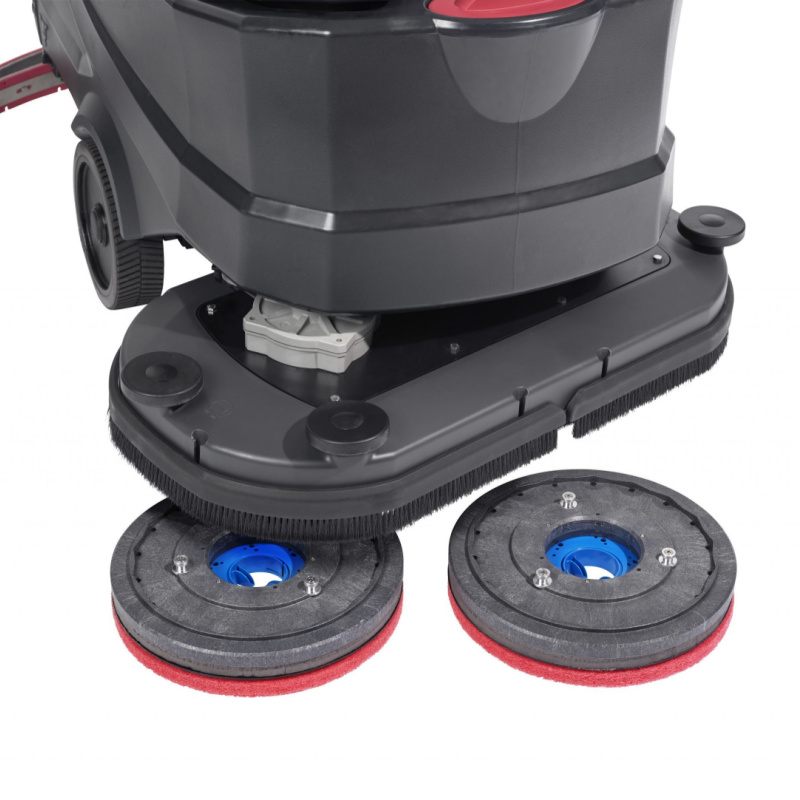

Dual-brush disc scrubbing system delivers wider coverage and deeper scrubbing power.
-
Traction drive with ergonomic controls reduces operator fatigue on long cleaning runs.
-
Large 85 L solution & 90 L recovery tanks for extended runtime between refills.
-
Eco and Silent modes help reduce operating costs and allow daytime use with lower noise.
-
Intuitive LCD control panel makes setup and operation easy for all users.
-
Robust build with simple maintenance access keeps downtime low and service quick.
Compare the Pair: Viper AS6690T vs Viper AS5160T
Both the Viper AS6690T and the Viper AS5160T are walk-behind scrubber dryers designed for commercial cleaning, but they suit different scales of work. The AS5160T is ideal for medium-sized areas and delivers strong all-around performance, while the AS6690T is built for larger facilities and extended cleaning tasks, with additional capacity, coverage, and features to make heavy-duty cleaning easier and faster.
Key differences:
-
Tank Capacity & Scrubbing Width: The AS6690T has larger 85 / 90 L tanks and a 660 mm scrubbing width, compared to the AS5160T’s 61 L tanks and 510 mm width, allowing for longer cleaning runs and more area per pass.
-
Weight & Dimensions: The AS6690T is heavier and larger (≈345 kg) for stability and durability in big spaces, whereas the AS5160T is lighter (≈220 kg) and more compact for easier manoeuvrability in tighter areas.
-
Advanced Features: The AS6690T includes Eco and Silent modes and a full LCD control panel for enhanced runtime flexibility and operator convenience, which are not available on the AS5160T.

Viper AS6690T Technical Specifications
-
Input Volts: 24 V
-
Scrubbing Width: 660 mm
-
Brush/Pad Diameter: 330 mm
-
Maximum Brush Pressure: 49 kg
-
Solution / Recovery Tank Capacity: 85 / 90 L
-
Squeegee Width: 830 mm
-
Rated Power: 1,750 W
-
Brush Motor: 500 W ×2
-
Vacuum Motor: 500 W
-
Traction Motor: 250 W
-
Productivity (theoretical/actual): 2,640 m²/hr / -
-
Sound Pressure Level: 69 dB(A)
-
Maximum Running Time: 240 mins
-
Dimensions (L×W×H): 1,490 × 730 × 1,020 mm
-
Operating Weight: 345 kg
Viper AS6690T Parts Manual
Operator's Manual
Parts List
Brochure
